| Gauge (#) | Size (mm) | Point Type | Point Angle | Point Width | Point Length |
|---|---|---|---|---|---|
| #6 | 3.5 | Standard TP-S TP-L |
100° 110° |
2.80 ~ 2.90 |
4.5 5.0 |
| #7 | 3.9 | Standard TP-S TP-L |
100° 110° |
3.00 ~ 3.25 |
4.5 5.5 6.0 |
| #8 | 4.2 | Standard TP-S TP-L |
100° 110° |
3.35 ~ 3.50 |
4.5 5.5 7.0 |
| #10 | 4.8 | Standard TP-S TP-L DE |
90° 100° 105° 110° |
3.85 ~ 4.10 |
5.5 6.5 7.0 7.5 |
| #12 | 5.5 | Standard TP-S TP-L DE |
90° 100° 105° 110° |
4.50 ~ 4.70 4.85 ~ 5.00 |
6.0 7.0 8.0 9.0 12.0 15.0 17.0 |
| #14 | 6.3 | Standard TP-S TP-L |
100° 105° 110° |
5.45~ 5.65 |
9.0 9.5 12.0 15.0 |

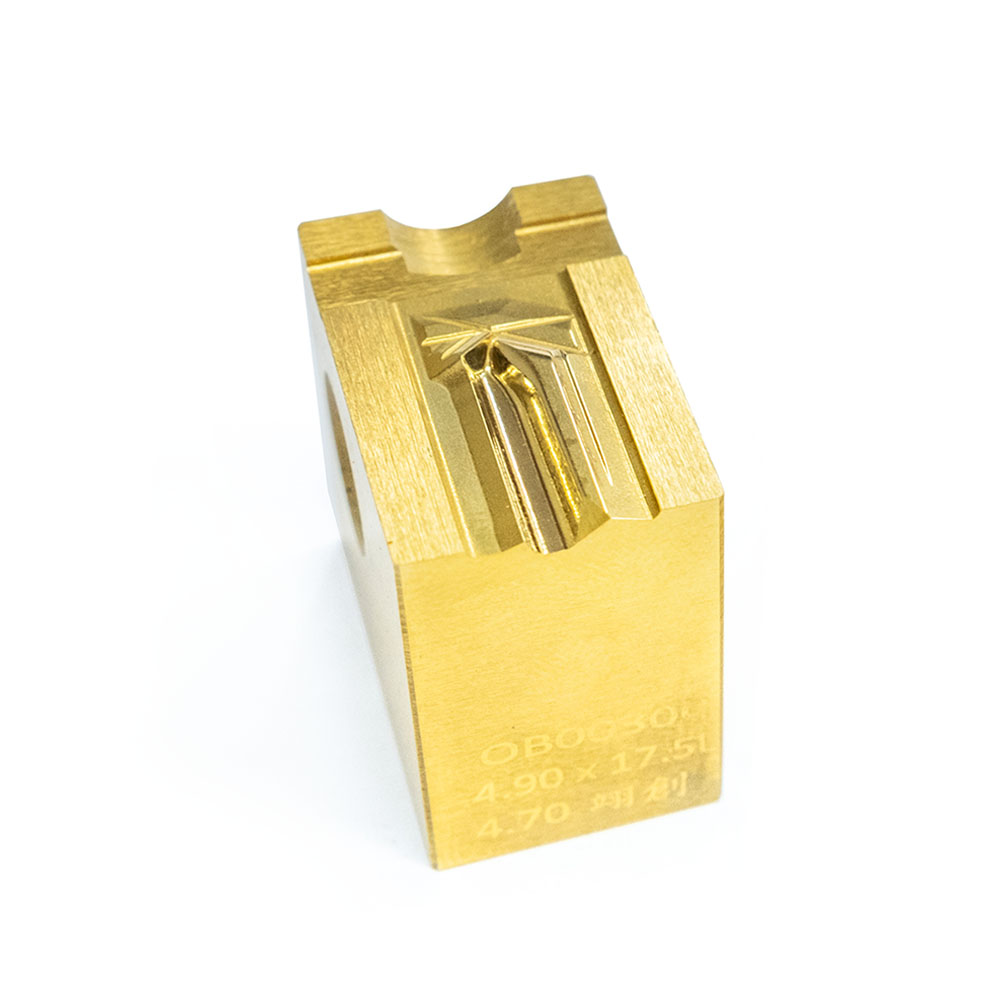

Producing in house drilling point dies is an essential part of increasing manufacturing efficiency, lowering cost, and more importantly, quality control.
